GSoC - Coding Period Week 3

Work Done This Week (June 21st to June 27th)

• Converted the upgraded segmentation model into ONNX format.

• Ran inference on the ONNX model (colab and local environment) to make sure it works. Then used Gradio to build a GUI.

• The next step was to host this online. Gradio has their own hosting service, but that costs $7/month. Looked into ways of hosting apps online for free, decided to go with Heroku.

• Created the additional files required for hosting online on Heroku:
  • Procfile
  • requirements.txt
  • setup.sh

• Pushed the files into a github repository, and linked it to the Heroku app.

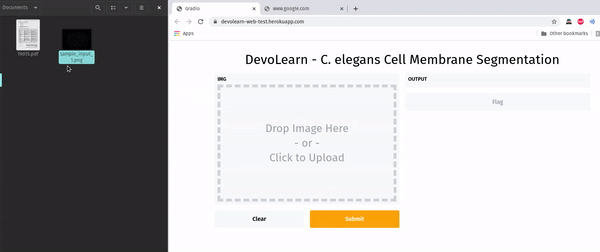

• Deployed a bare-bones version of the app online.

• Adding the centroid mapping feature turned out to be tricky. It worked on local-host, but did not work when deployed on Heroku.

• Checked the logs, the error message read :

ImportError: libSM.so.6: cannot open shared object file: No such file or directory

• Turns out, it was in issue with OpenCV's dependency on libSM6. I replaced opencv-python==4.5.2.54 with opencv-python-headless==4.5.2.54 and it worked!

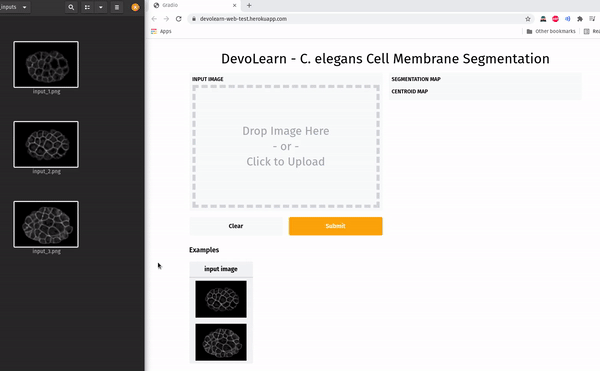

• Not everybody has images of C. elegans embryos saved on their computer, so I decided to add in some examples on the site.

• Note: The Heroku app is currently linked to a personal repository for quick prototyping and testing.

• Links:
  • Converting torch model to ONNX - Notebook
  • Test repository linked to the cell membrane segmentation heroku app - Link
  • Cell membrane segmentation web app (test phase)

Planned:

• Make a couple more changes to the GUI hosted on Heroku.
• Upgrade the DevoLearn cell lineage population model.
• Host the cell lineage population model online.
• Resume work on the cell nucleus segmentation model.
